압력센서

– 적용분야 : 굴삭기, 유압드릴, 트랙터, 반도체 칠러장비, 스크러버장비, 에어컨 냉매압력., 부스터펌프, HAVC 시스템.

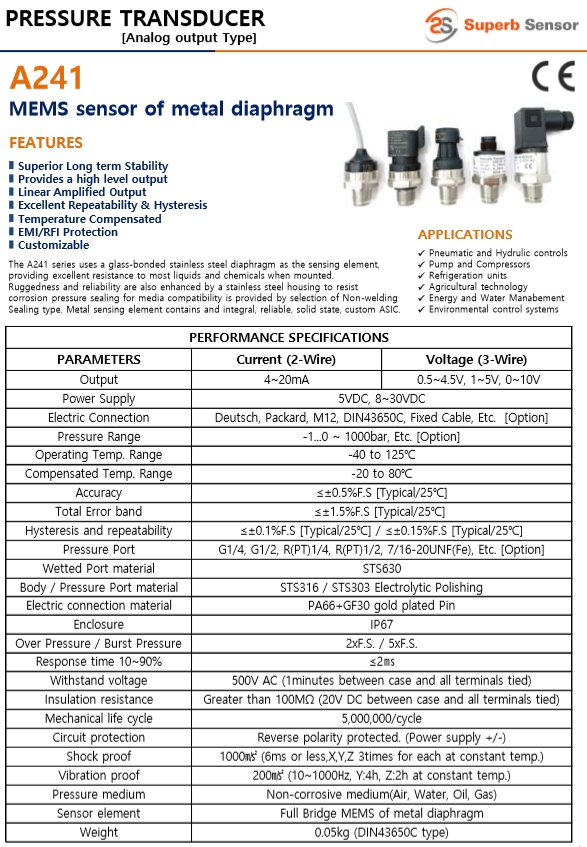

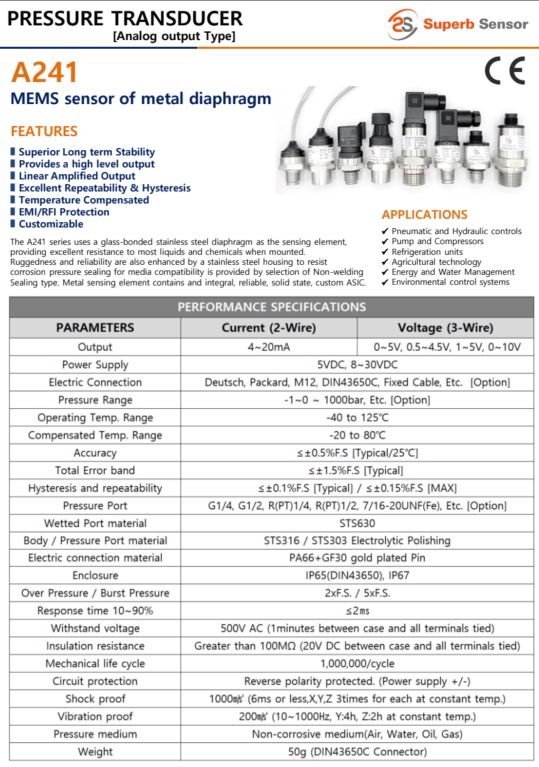

A241_ver1.0

Download
– Output : 4~20mA, 0.5~4.5V, 1~5V, 0~10V
– Power Supply : 5VDC, 8~30VDC
– Electric connection : Deutsch, Packard, M12, DIN43650C, Stationary Cable [Option]
– Process connection : G1/4, G1/2, R(PT)1/4, R(PT)1/2, 7/16-20UNF(Fe) [Option]
– Pressure Range : -1 ~ 1000bar [Option]
– Operating Temp. Range : -40 ~ 125℃
– Accuracy : ≤ ±0.5%F.S[Typical/25℃]
– Enclosure : IP67

AO-100DP_ver1.0

Download
– Output : I2C
– Power Supply : 3VDC
– Electric connection : SOP6, DIP6
– Process connection : 1Hole
– Pressure Range : 5KPa, 10KPa, 20KPa, 40KPa, 100KPa, 200KPa, 300KPa, 500KPa, 1000KPa
– Operating Temp : -40 to 125℃
– Accuracy : ≤ ±0.5%F.S[Typical/25℃]
– Gauge type pressure sensor

ASM-3000_ver1.2.1

Download
– Output : I2C
– Power Supply : 5VDC
– Electric connection : SOP6, DIP6
– Process connection : 1Hole
– Pressure Range : ±500mb
– Operating Temp : -20 to 80℃
– Accuracy : ≤ ±1%F.S[Typical/25℃]
– Gauge type pressure sensor
