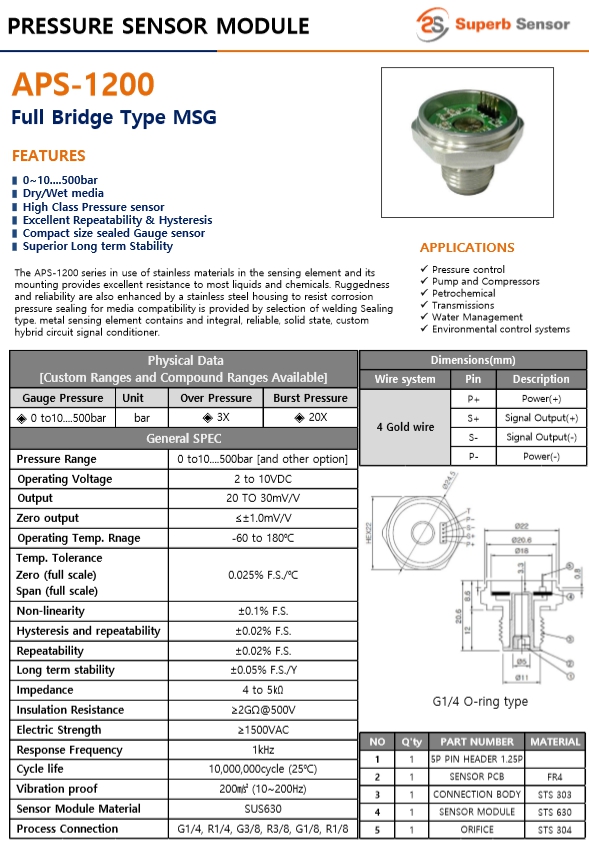

압력센서 모듈

– 적용분야 : 압력 제어, 펌프 및 압축기, 석유화학, 변속기, 수질 관리, 환경 제어 시스템.

AP-1200_ver1.0

Download
– Pressure Rnage : 0 to 10….500bar [Option]
– Operating Voltage : 2 to 10VDC
– Output : 20 to 30mV/V
– Zero output : ≤ ±1.0mV/V
– Process connection : G1/4 [Option]
– Operating Temp. Range : -60 ~ 180℃
– Non-linearity : ±0.1%F.S.
– Hysteresis and repeatability : ±0.02%F.S.
