Differential Pressure Sensor

– Application areas : Fire extinguishing, Ventilation units, Air purifiers, Hospital negative pressure rooms.

PS-33D_ver1.2

Download
– Output : I2C
– Power Supply : 3VDC
– Electric connection : PCB DIP type
– Process connection : 2 Hole
– Pressure Range : ± 1,000pa
– Operating Temp. Range : -20 to 80℃
– Accuracy : ≤±0.5%F.S[Typical/0~50℃]
– Enclosure : IP60

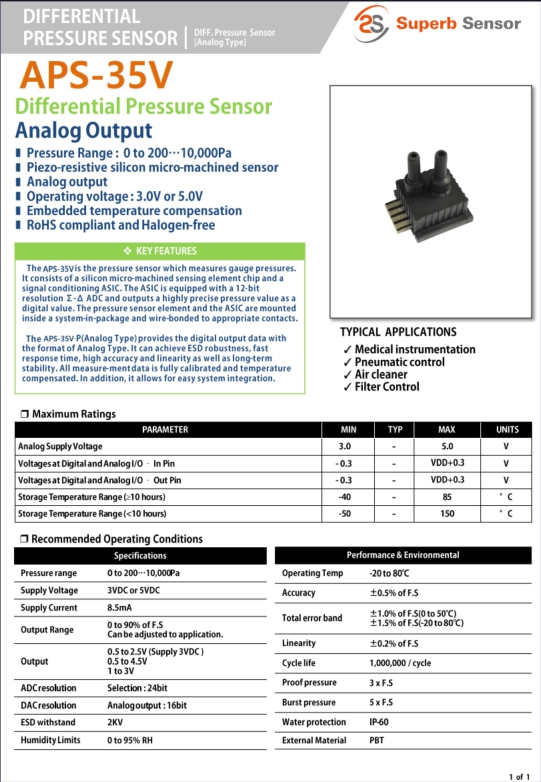

PS-35V_ver1.2.1

Download
– Output : 0.5~2.5V, 1~3V
– Power Supply : 3VDC, 5VDC
– Electric connection : PCB DIP type
– Process connection : 2 Hole
– Pressure Range : 0~200 … 1,000pa
– Operating Temp. Range : -20 to 80℃
– Accuracy : ≤±0.5%F.S[Typical/0~50℃]
– Enclosure : IP60

PS-200D_ver3.4

Download
– Output : I2C
– Power Supply : 3VDC
– Electric connection : 5P connector
– Process connection : 1 Hole
– Pressure Range : ± 1,000pa
– Operating Temp. Range : -40 to 85℃
– Accuracy : ≤±0.5%F.S[Typical/0~50℃]

SM Series_Rev0.2

Download
– Output : I2C
– Power Supply : 3.3VDC, 5VDC
– Electric connection : SOIC-16, 5P connector
– Process connection : 2 Hole
– Pressure Range : 0~250Pa, ± 125Pa
– Operating Temp. Range : -20 to 70℃
– Accuracy : ≤±0.5%F.S[Typical/0~50℃]

DP-100_ver1.0

Download
– Output : I2C
– Power Supply : 10~28VDC
– Electric connection : Cable type
– Process connection : 1/8″ Nipple
– Pressure Range : 0~300 … 2,000pa, ±300 … ±1,000pa
– Operating Temp. Range : -10 to 70℃
– Accuracy : ≤±0.5%F.S[Typical/25℃]
– Enclosure : IP67
